THE SHORTEST FREESTYLE SHAPE ON THE MARKET?

Simply amazing what is possible to do with a windsurfer and the young generation has pushed this discipline to another level. This shape is not just a board with a cut nose but it is a real developed short board and the differences are significant. No matter if in the air or on the water the rotation speed is simply faster and it is the key point to pull multiple moves.

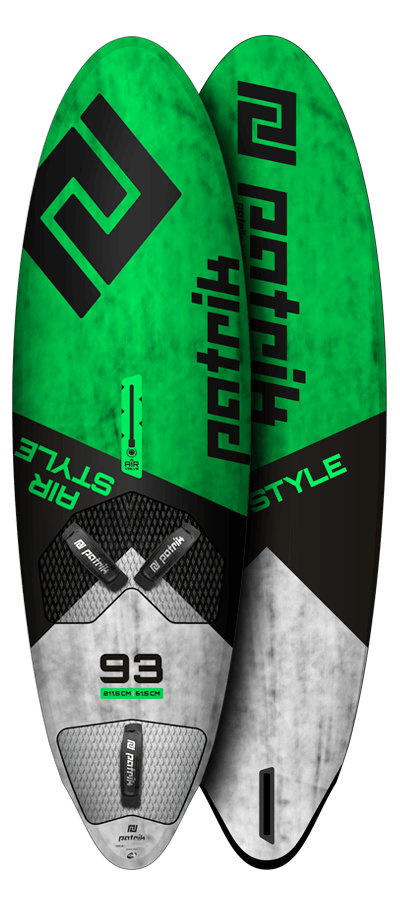

2020 air style.jpg

DIMENSIONS

	Length [mm]	Width [mm]	Volume [litre]	Tail Width at 300 [mm]	Nose Width at 2000 [mm]	Weight (+/-6%) [kg]	Strap Options & Insert Holes	Strap Quantity	Fin Box	Approved Series
AIR-STYLE 93	2115	615	93	422	307	6.2	5×4	3	Power	PWA
AIR-STYLE 99	2120	645	99	445	335	6.4	5×4	3	Power	PWA

2020 air style sailing.jpg

SHAPE DETAILS

Optical aspect & Footpad:

With the new graphic aspect influenced by Italian designer Fabio Canella we are taking a new direction and be more coloured while still keep it simple.

The 6mm thick over-dotted diamond groove grip pad has 2x extra layers for ergonomic shape right under the strap and as well an extra 6mm soft sponge under-layer which makes it total 12mm, very nice and comfortable with extra grip.

Shape:

A short fast rocker line with very early planning and acceleration ability is needed to make as many moves as possible within a short distance

Scoop-Rocker:

Fast rocker line with top planning and acceleration ability and a touch of tail rocker for extra pop.

Volume distribution:

Very thick under the back strap for maximum push to plane early, accelerate, go upwind and pop.

Outline:

The short length with the normal nose width makes the board feel light and compact and makes it spin faster. The wide middle for early planning and stable platform when sliding, rotate and spin on the water. Reduced tail width behind the strap for less wetted surface and better tail sinking when pushing for the pop.

Bottom Shape:

A flat panel V under the mast track for maximum water slide ability and a slight double concave under the straps to absorb the chop and slight better tracking with the short fin used.

Rails / Tuck:

Super soft in the nose area for maximum slide but a bit edgier trough the center to keep the planning and acceleration and sharp in the tail for clean water release and top speed.

Deck Shape:

Dome deck in the tail area for more grip under the back foot and quite flat under the front foot makes it more comfortable to ride in switch stands position.

Fin boxes:

Powerbox

Inserts:

All double inserts with 4-positions for anti-Twist and extra possibilities to change angle and width for different foot size and riding style.

RANGE OF USE

		Sailor Type (Weight & Size)			Sailor Skills			Ideal Wind Strength / Sailor Type			Water Conditions
	S	M	L	Entry	Advanced	Pro	Low	Med	High	Flat	Chop	Wave
	less than 70kg / less than 170cm	70-90kg /170-190 cm	more than 90kg / more than 190cm	uphaul, gliding all reaches	waterstart, strap & harness, first jibes	moves, waves, speed	less than 15 knt	15-25 knt	more than 25 knt	flatwater / chop: less than 1m	chop / wind waves: less than 2.5m	wind waves / swell: more than 2.5m
AIR-STYLE 93	X	X	X			X	S	S/M	S/M	X	X
AIR-STYLE 99	X	X	X			X	S/M	S/M/L	M/L	X	X

CONSTRUCTION

The lighter the board the easier the moves but if the board breaks it is simply annoying to deal with repairs and loosing sailing time. Again, the pro riders choose a strong construction over the light weight and we offer you what the Pro’s like.

Our full deck Carbon Kevlar is light but still impact strong and the Biax fibre on the bottom is giving the extra flex needed to absorb the uncountable landings.

RANGE OF USE | SAILS AND FINS

	Best Sail Size [m2]	Sail Range [m2]	PATRIK Fins that come with the board [mm]	Fin Range [mm]
AIR-STYLE 93	3.5-5.5	3.0-6.0	PS 180	140-220
AIR-STYLE 99	4.5-6.0	4.0-6.5	PS 200	160-240
