Want to optimise your ride, enter the Foil Drive Assist PLUS Project Cedrus Integration!

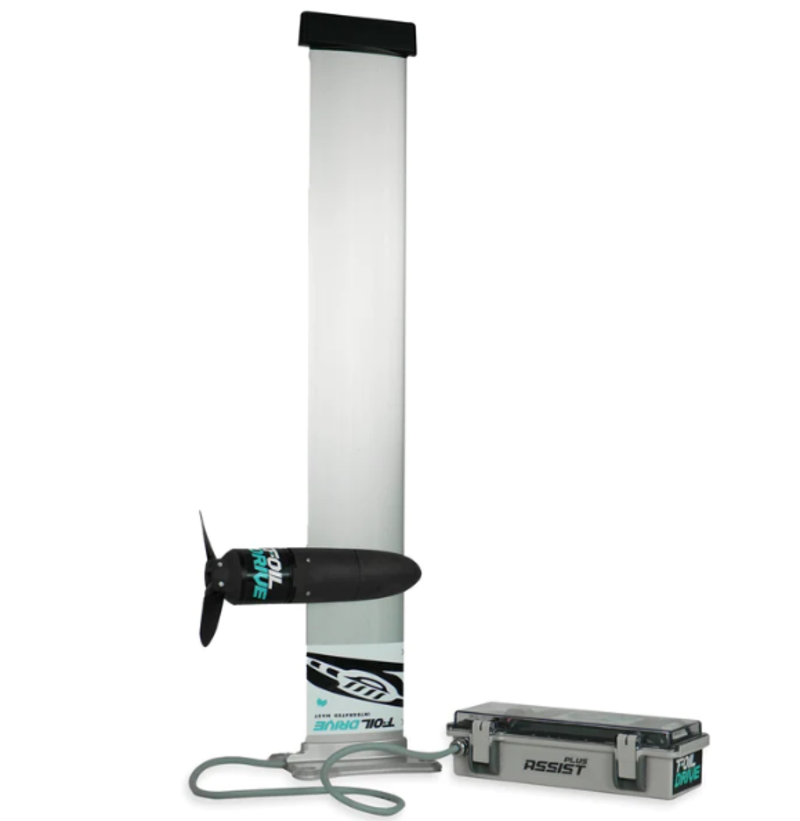

This collaboration brings you the best of both where your Foil Drive Assist PLUS becomes fully integrated with the beautifully crafted, Aluminium Project Cedrus Mast and Adaptors. For riders who wish to have a fixed motor position, upgrading to a cedus integration will make your riding experience smoother than ever.

The internal cable significantly reduces drag both in the water, and on re-entry, improving your efficiency, glide and hydrodynamics.

Handmade in the US, the Project Cedrus Aluminium Mast is the perfect pairing, aligning with our ethos of a product that can be used with your existing foil gear. Project Cedrus has a growing list of fuselage adaptors that allow you to ride your existing foils.

Please read HERE for instructions on selecting your measurements before ordering.


Axis, Cabrinha, SAB Kraken, Lift, Takuma and UniFoil are generally in stock ready to order. Adapters for other brands including F-One Slingshot, Naish, MikesLab, and more are available on a made-to-order basis direct from Project Cedrus.

Batteries: The Standard Battery is 37% more capacity than the Assist and are perfect for flatwater foildriving, heavier riders or those wanting longer sessions. A point of difference is the Small Batteries, these are 1/3rd the weight and capacity of the Standard, and can be taken on most airlines. You can also connect 2 Small Batteries together for a longer session when travelling. Read more about batteries HERE.

Low Volume Prone Boards: Assist and Assist PLUS kits were intended for use on larger, SUP style boards. Many foildrivers successfully use their kits on smaller, prone style boards, however, there are some things to consider. You will need to decide where you mount the box, most people put it towards the nose of the board. This is because the antenna to the controller must remain above water. There is a lot of great content on Youtube from several creators.

Specs:
Install weight: 3.7kg (Assist PLUS) - 6.15kg (Total Install weight with 80cm Mast)
Operating Voltage: 28-32v
Max Thrust: 24.5kg (Aluminium Propellers)
Runtime: 30min-3hrs depending on use case and other variables.
Recharge time: Appx. 2hrs (Standard Battery)
Install time: 5mins

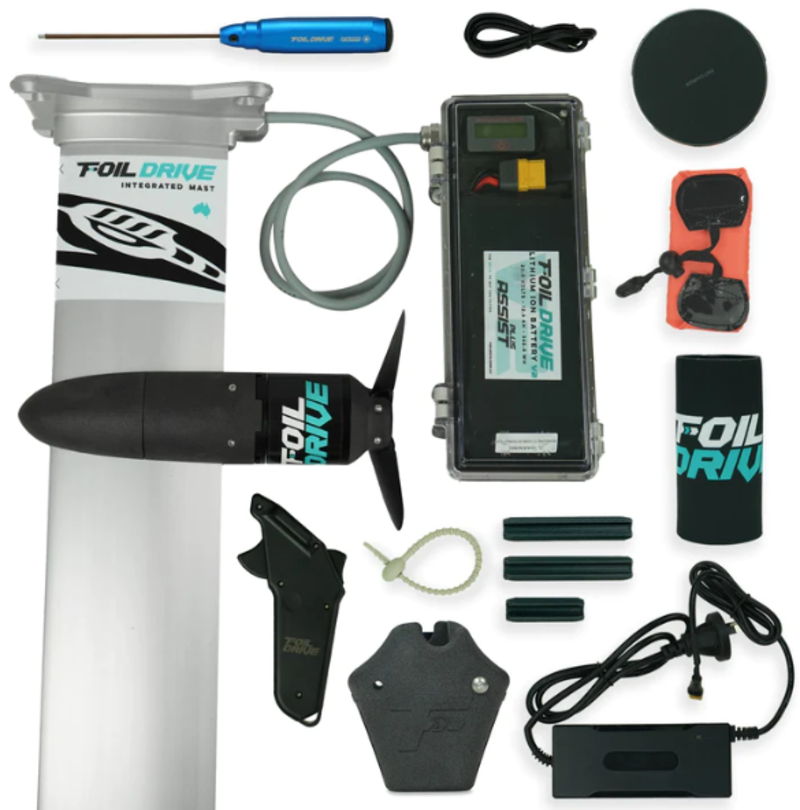

WHAT'S INCLUDED

Foil Drive Assist Plus Integrated
Foil Drive Assist PLUS Standard Battery
Project Cedrus Mast (Variations)

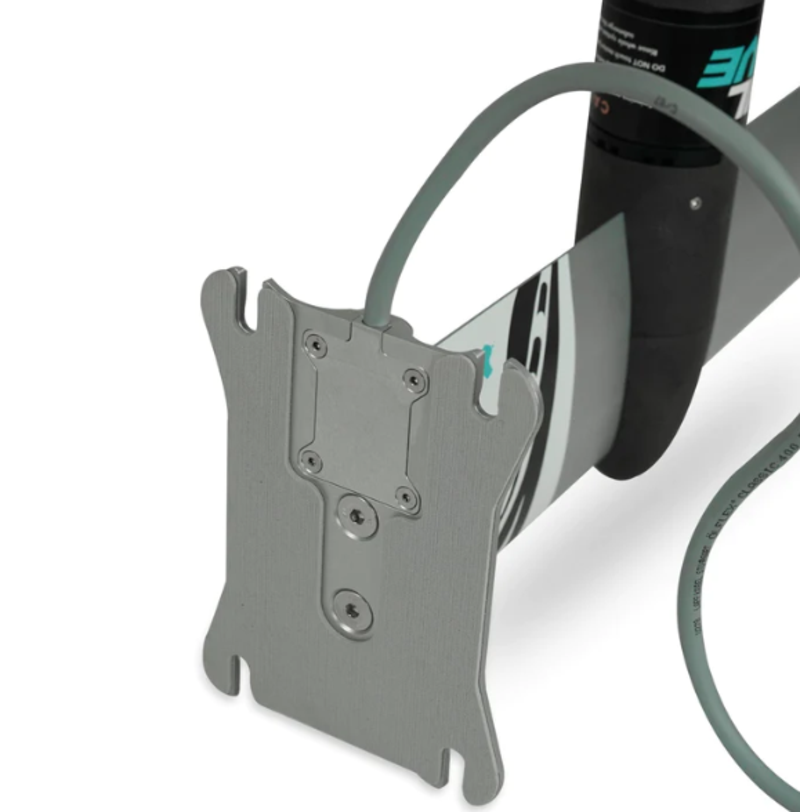

Project Cedrus Adaptor (Variations Including NA)
Folding Propellers (Variations)
Wireless Throttle Controller
Paddle Mount (Optional)

3M Dual Lock (preinstalled) for mounting
3x Board Cable Guides (1x Short, 2x Long)
1x 2.5mm M3 Hex Driver (Spare Bolts inside)
Wrist Floaty
1x Lipo Safe Bag
Stubby Cooler for motor protection
Battery Charger (AUS or US Plug (To Specify)
Wireless charger for controller
1x Re-Usable Silicon Tie

NOTE:
Motor Pod Positions are final and cannot be altered.
